beroNet 1 PRI VoIP Gateway

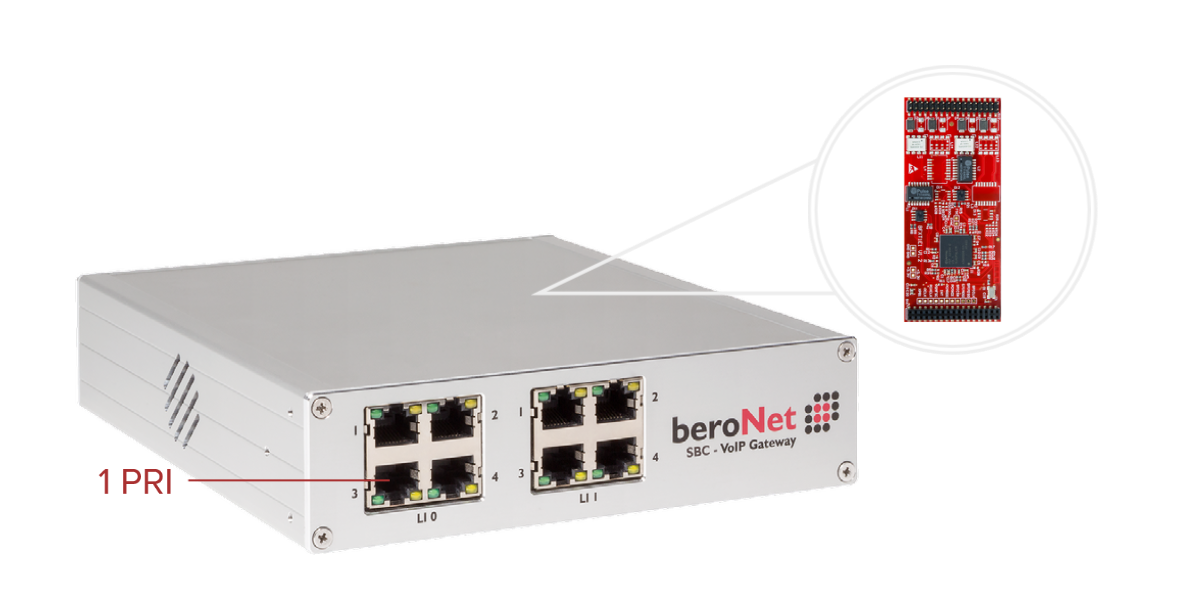

The beroNet 1 PRI SBC VoIP Gateway contains one PRI port, BNSBC-M-1PRI and BNSBC-L-1PRI with an integrated E1 module, or BNSBC-L with an additional T1 module. All modules have a high precision clock. The port can be operated individually in NT (Network Termination) or TE (Terminal Equipment) mode. A fax server can be also connected by adding a virtual CAPI. The Gateway is compatible with SIP. A connection to common PBX Systems is possible via the ISDN interface.

REQUEST A QUOTE

Advantages

Connects SIP with ISDN
ISDN port can be switched in TE or NT mode
Expandable with a supplementary module (PRI, BRI, FXO, FXS)
High Precision Clock
Cloud managed
Cascadable using PCM
High quality Aluminium Housing
Virtual CAPI available

Specifications

1 PRI (S2M, E1) ISDN Port
The Port is configurable in NT or TE Mode
Termination resistors (100 Ohm) per line configurable
Layer 2 is Q.921 and Layer 3 is Q.931 (EuroISDN DSS1) compatible
DSS1 Feature Set: CLIP/No-Screening, CLIR, COLP, UUS, MCID, CD, CNIP AOC-D
Q.SIG Feature Set: CNIP
Optional CAPI 2.0 available (Fax, voice)
Codecs: G.723.1 and Annex A, G.729 a/b, G.726, (up to: 4 channels with BF400, 16 channels with BF1600)
G.711 u/a (up to: 16 channels with BF400, 64 channels with BF1600), including echo cancellation
G.168/G.165 echo cancellation with echo path change detection, up to 128ms
Voice activity detection / comfort noise generation
DTMF digit detection and generation
T.38 Fax Relay (V.27, V.29 and V.17) (up to: 4 channels with BF400, 16 channels with BF1600)
SIP user agent IETF RFC3261 compatible
SIP via UDP/TCP with optional TLS 1.2 support, SRTP
“TDM Bridging” of two beroNet devices via PCM Bus
Power supply: 110-230V, operating 12V DC at 2A
Compliance: CE (EN55022, EN55024, EN60950)
