beroNet 4 BRI VoIP Gateway

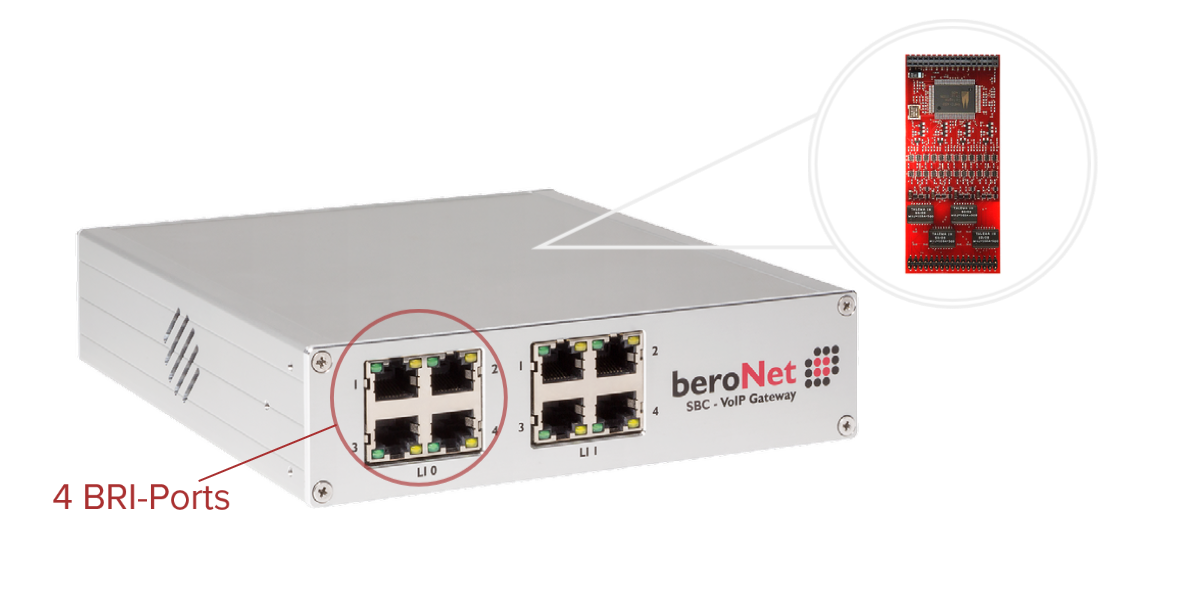

The beroNet 4 BRI SBC VoIP Gateway (BNSBC-M-4BRI) contains 4 BRI (S0) ports. It can be connected to the public telephone network or to an internal connection of the telephone system. Furthermore, a classic telephone system can be connected to a VoIP connection or a VoIP PBX via the 4 BRI SBC VoIP Gateway. By adding a virtual CAPI, a Fax Server can also be connected. The beroNet 4 BRI SBC VoIP Gateway is ideal to enable a PSTN connection without quality degradation joining the advantages of ISDN & VoIP.
Advantages
Connects SIP with ISDN
ISDN Ports separately as TE or NT mode switchable
For multiple devices as well as system connections
Expandable with a supplementary module (PRI, BRI, FXO, FXS)
Cloud managed
Cascadable using PCM
19“ rack or wall mountable
High quality Aluminium Housing
Virtual CAPI available
Specifications
- 4 BRI (S0) ISDN Ports
- the 4BRI module has an integrated High Precision Clock (HPC)
- Each Port is configurable in NT or TE Mode with PIN interchanging
- Termination resistors (100 Ohm) for every Port separately configurable
- TE / NT and Termination per Port switchable in Software (Jumperfree)
- Layer 2 is Q.921 and Layer 3 is Q.931 (EuroISDN DSS1) compatible
- DSS1 Feature Set: CLIP/No-Screening, CLIR, COLP, UUS, MCID, CD, CNIP AOC-D
- Q.SIG Feature Set: CNIP
- Optional CAPI 2.0 available (Fax, voice)
- Codecs: G.723.1 and Annex A, G.729 a/b, G.726, (up to 4 channels)
- G.711 and Echo Cancellation up to 16 channels
- G.168/G.165 Echo cancellation with echo path change detection, up to 128ms
- Voice activity detection / comfort noise generation
- DTMF digit detection and generation
- T.38 Fax Relay (V.27, V.29 and V.17) (up to 4 channels)
- SIP user agent IETF RFC3261 compatible
- SIP via UDP/TCP with optional TLS 1.2 support, SRTP
- “TDM Bridging” of two beroNet devices via PCM Bus
- Power supply: 110-230V, operating 12V DC at 2A
- Compliance: CE (EN55022, EN55024, EN60950)
Dimensions and weight
- Dimensions: 168 x 170 x 42 mm
- Weight: 800g
- Mounting: 1U, optional available: 19“ rack brackets, wall-mountable
- Storage temperature: -20° – 70°C
- Operating temperature: 0° – 70°C
- Humidity: 20% – 90%, non-condensing
PSTN Connection without Quality Degradation:
Advantages of both world’s: ISDN & VoIP
Further use of High Quality ISDN
Integration of ISDN Dataservice & Video Telephony
