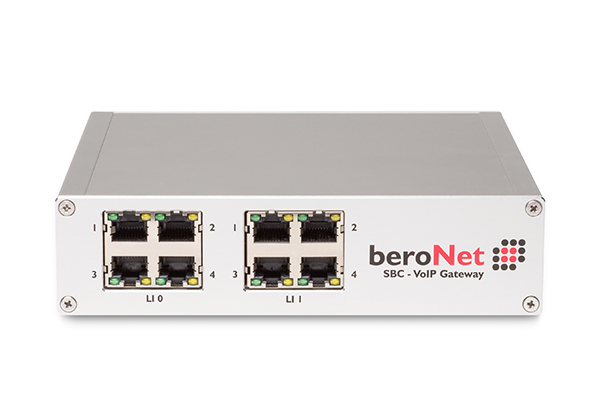

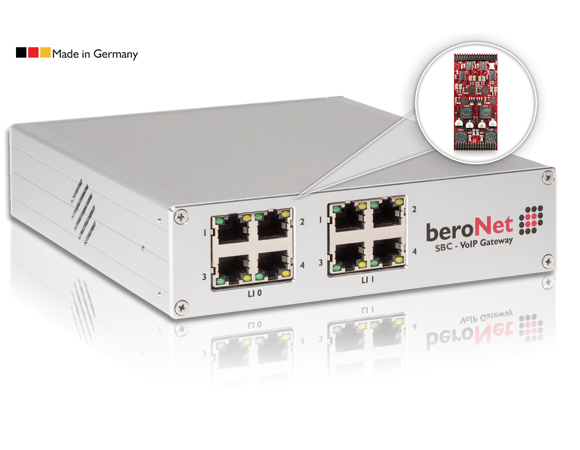

beroNet 8 FXS VoIP Gateway
The beroNet 8 FXS VoIP Gateway (BNSBC-M-8FXS) provides 8 analog FXS ports for the connection of analog telephones, or Fax devices. With transparent hardware bridging, potentially difficult services fax devices can be connected to SIP Trunk or IP PBX through a beroNet Gateway. The 8 FXS VoIP Gateway is also available as an 24 FXS Version (BNSBC-L-24FXS). BNSBC-M-8FXS replaces BF4008FXSBox, and needs no BFTAdapter.
Advantages
Extends analog devices to SIP (telephone, fax, alarm system, EC Cash)
Compatible with any IP PBX, on site or cloud based
Cloud managed
Dual NIC
SIP-to-SIP licenses available
19“ rack or wall mountable
High quality aluminium housing
Specification
- 8 FXS Ports
- CLIP, CNIP
- Hold, Retrieve, Transfer
- MWI (Stutter, FSK)
- Codecs: G.723.1 and Annex A, G.729 a/b, G.726, (up to 4 channels)
- G.711 and including echo cancellation up to 16 channels
- G.168/G.165 echo cancellation with echo path change detection, up to 128ms
- Voice activity detection / comfort noise generation
- DTMF digit detection and generation
- T.38 Fax Relay (V.27, V.29 and V.17) (up to 4 channels)
- SIP user agent IETF RFC3261 compatible
- SIP via UDP/TCP with optional TLS 1.2 support, SRTP
- Dual NIC
- SBC licenses available for transparent or transcoded SIP-to-SIP sessions
- “TDM Bridging“ of two beroNet devices via PCM Bus
- Power supply: 110-230V, operating 12V DC at 2A
- Compliance: CE (EN55022, EN55024, EN60950)
Dimensions and weight
- Dimensions: 168 x 170 x 42 mm, Weight: 800g
- Mounting: 1U, optional available: 19“ rack brackets, wall-mountable
- Storage temperature: -20° – 70°C
- Operating temperature: 0° – 70°C
- Humidity: 20% – 90%, non-condensing
Analog SIP Adapter:
Compatible with any PBX System
Compatible with common VoIP Providers
Continued operation of analog devices:
- Analog Phones
- Fax Machines (T.38), modem and fax over IP (Clearchannel according RFC4040)
- Emergency Systems
- Elevator Emergency Systems
- Door Openers
- Door Voice Systems
