beroNet BRI & FXS VoIP Gateway

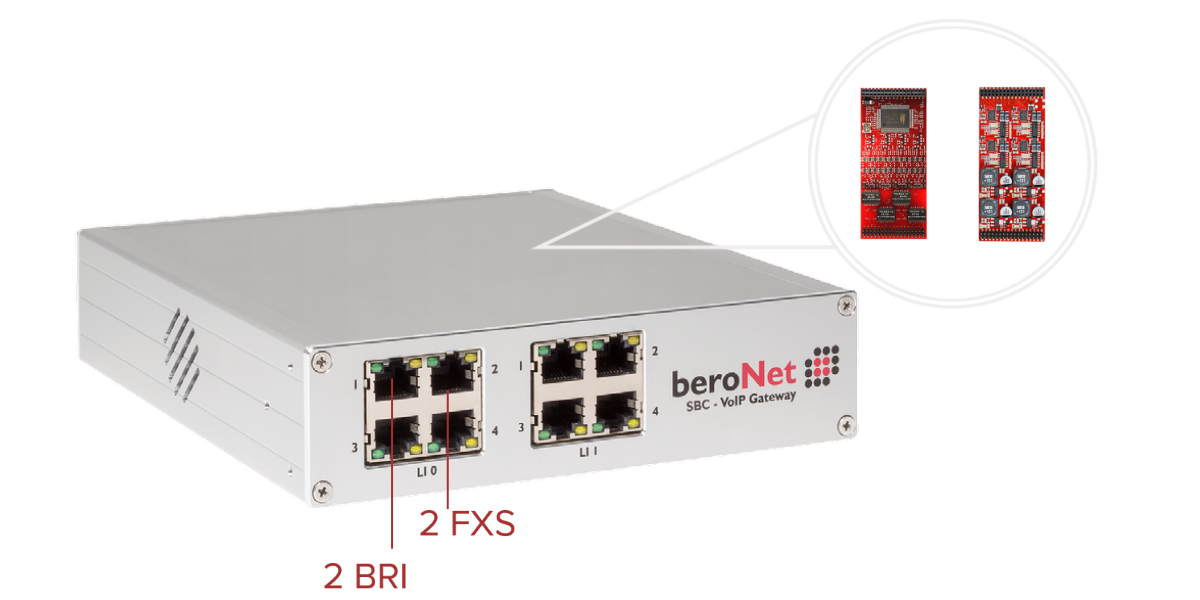

The beroNet BRI & FXS VoIP Gateway (BNSBC-M-2HYB) contains 2 BRI (S0) and 2 FXS ports. It connects SIP with ISDN and analog (FXS); ideal for connecting analog devices like telephone, Fax, alarm system, ec cash and modems. The switching of TE or NT mode as well as the terminating resistors for each port is done JumperFree using the beroNet Web GUI. Â A fax server can also be connected with a virtual CAPI.
Advantages
Connects SIP with ISDN, for the connection to the public telephone network
ISDN Ports separately as TE or NT mode switchable
For multiple devices as well as system connections
Expandable with a supplementary module (PRI, BRI, FXO, FXS)
Cloud managed
Cascadable using PCM
19â rack or wall mountable
High quality Aluminum Housing
Virtual CAPI available
Operation of analog devices
Specifications
- 2 BRI (S0) ISDN and 2 FXS Ports
- Every Port is configurable in NT or TE Mode with PIN interchanging
- Termination resistors (100 Ohm) for every port seperately configurable
- TE / NT and Termination per Port transposable in Software (Jumperfree)
- Layer 2 is Q.921 and Layer 3 is Q.931 (EuroISDN DSS1) compatible
- DSS1 Feature Satz: CLIP/No-Screening, CLIR, COLP, UUS, MCID, CD, CNIP AOC-D
- Q.SIG Feature Set: CNIP
- 2 FXS Ports / CLIP, CNIP
- Hold, Retrieve, Transfer / MWI (Stutter, FSK)
- Optional CAPI 2.0 available (Fax, voice)
- Codecs: G.723.1 and Annex A, G.729 a/b, G.726, (up to 16 channels) G.711 u/a
- G.168/G.165 echo cancellation with echo path change detection, up to 128ms
- Voice activity detection / comfort noise generation
- DTMF digit detection and generation
- T.38 Fax Relay (V.27, V.29 and V.17) (up to 16 channels)
- SIP user agent IETF RFC3261 compatible
- SIP via UDP/TCP with optional TLS 1.2 support, SRTP
- âTDM Bridgingâ of two beroNet devices via PCM Bus
- Power supply: 110-230V, operating 12V DC at 2A
- Compliance: CE (EN55022, EN55024, EN60950)
Dimensions and weight
- Dimensions: 168 x 170 x 42 mm
- Weight: 800g
- Mounting: 1U, optional available: 19â rack brackets, wall-mountable
- Storage temperature: -20° â 70°C
- Operating temperature: 0° â 70°C
- Humidity: 20% â 90%, non-condensing
PSTN Connection without Quality Degradation:
Advantages of both worlds: ISDN & VoIP
Further use of high quality ISDN
Integration of Fax devices, ISDN Dataservice & Video Telephony
