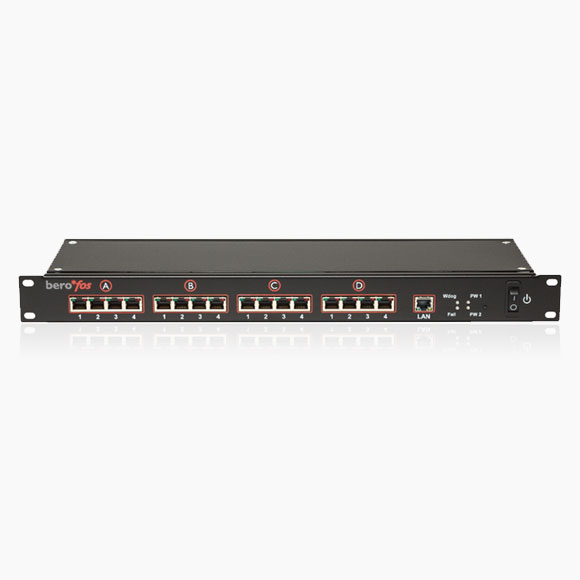

beroNet Telephony Failover Switch
Disasters in a communication network are often very difficult to predict and there is usually a very small advance notice when a communication line goes down. The beroNet Failover Switch (BNFOS) provides an effective way for dealing with such unexpected events by re-routing the lines to a back-up line when undesirable changes are detected. Therefore beroNet provides beroNet Failover Switch, a solution device for PBX Clustering and failover scenarios that requires a physical reconnection of analog, BRI or PRI lines.
Failover Scenario
The failover scenario grants the smooth and reliable operation of two PBXs side by side, where the second one will be switched to active only after the failure of the first one in order to reduce downtime to a minimum (see figure). This scenario is not only interesting in failure situations, it could also be used in cases of maintenance, repair or upgrade of your telecommunications equipment.
Bypass Scenario
The bypass scenario is interesting for customers who want to keep their old telephone system and add new functionalities by adding a new PBX in front of the old one (e.g. by an Asterisk system). With the bypass scenario you have the opportunity to add a new PBX between the PSTN Lines and the outgoing Lines of the old PBX system. In the case of a failover, the PSTN Lines will transparently reconnected to the existing old PBX (see figure).
Features
- PSTN Failover device
- 2 switchable current connections
- 4BRI / 4PRI switchable
- Compatible with any PBX
- Technology independent (Analog, ISDN)
- Failover and Bypass Scenario
- Long-lasting and reliable – no moving parts
- Automated Failover via Watchdog
- Administrable via easy to use Web GUI
- Alarm function: visuel, audio & via Mailg
Technical Specifications

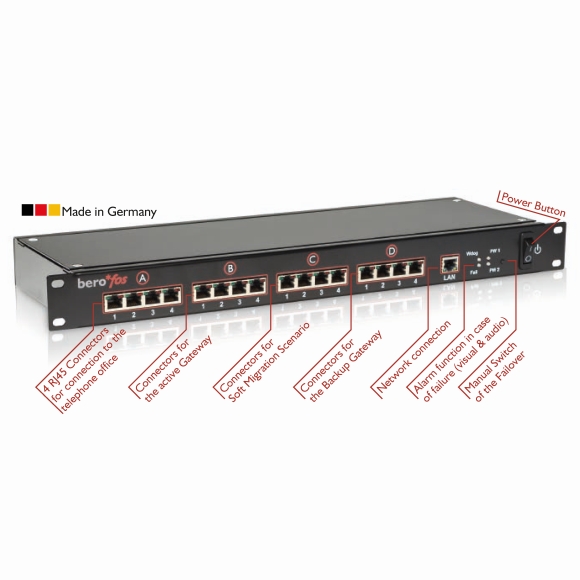

- 4 x 4RJ45 Ports to switch to 4 BRI, 4 PRI, 4 FXO or 4 FXS
- All 8 Pins of RJ45 can be switched
- Failover and Bypass Scenario selectable
- Administration via the self-explanatory Webinterface
- Completely controllable via API for custom applications
- Syslog generation in order to monitor devices by individual custom applications
- Onboard Watchdog for automatic switching in case of a Failover
- Onboard E-Mail notification in case of a Failover
- 2 switchable connections for power supply on the backside of the device e.g. for „Remote re-start “
- Compliance: CE (EN55022, EN55024, EN60950)
Models Description
- BNFOS Failover Switch (EU)
- BNFOS110 Failover Switch (USA)
