beroNet driverless and modular PCIe VoIP Card
VoIP Gateway in the form factor PCI Express

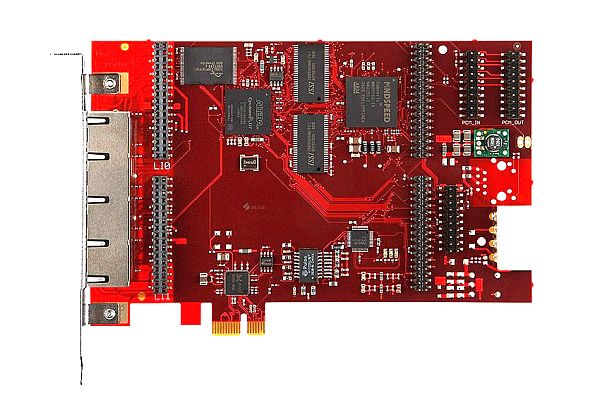

The beroNet PCIe VoIP cards are full-fledged VoIP Gateway Media Gateways in the form factor PCI Express. They are modular and can be equipped with up to two modules. Digital ISDN (BRI / PRI) and analog (FXS / FXO) are available for beroNet’s modular technologies. An optional PCM-Bus connection between two Gateways or beroNet VoIP cards ensures real hardware bridging for transparent audio transmission of sensitive voice, video, data, and Fax services. The beroNet PCI(e) VoIP cards are ideal for PBX manufacturers, Telephony Appliances, Fax appliances, Unified Communication Appliances, and hybrid systems.
Modular design allows beroNet VoIP Cards to meet any need
beroNet PCIe VoIP Cards’ modular design allows this device to meet any unique need. Modular VoIP technology increases adaptability and flexibility by allowing you to change the modules instead of the entire device if it is needed for a different VoIP installation.
Features
- Interface for the card is SIP
- Compatible with any PBX
- Technology independent
- Large interface variety: VoIP, ISDN and/or Analog
- Tough, no moving parts
- Hybrid: up to 2 Modules on one card
- Cloud managed
- No drivers or API needed: System detects card as Realtek Network Card
- Expandable with a supplementary beroNet VoIP Card
Technical Specifications
- Codecs: G.723.1 and Annex A, G.729 a/b, G.726 (up to 32 channels), G.711 u/a (up to 128 channels)
- G.168/G.165 echo cancellation with echo path change detection, up to 128ms
- Voice activity detection / comfort noise generation
- DTMF digit detection and generation
- T.38 Fax Relais (V.27, V.29 and V.17)
- SIP User Agent IETF RFC3261 conform
- SIP via UDP/TCP with optional TLS 1.2 support
- TDM bridging over 2 berofix devices through PCM bus interconnection, 8.192 kB/s
- PCI 2.2 conform 3,3V (Realtek 8139CL Chipsatz), 5V Slot compatible, min. 3,3V
- PCI express 1.1 compliant (chipset Realtek 8111C)
- Compliance: CE (EN55022, EN55024, EN60950)
Base Models expandable with addon modules (ISDN, Analog, Hybrid)
Model: BF400e
- Max Concurrent Channels: 16 Additional Module Slots Available: 2
Model: BF1600e
- Max Concurrent Channels: 64 Additional Module Slots Available: 2

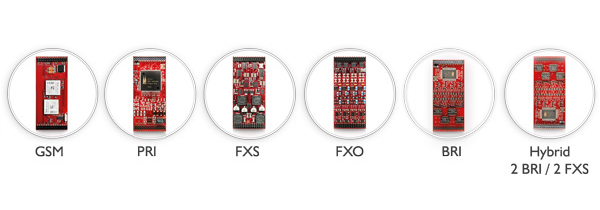

Addon Modules
- BNMO-4FXO: 4 Port FXO Module
- BNMO-4FXS: 4 Port FXS Module
- BNMO-2HYB: 2 Port BRI/S0 / 2 FXS Module
- BNMO-4BRI: 4 Port BRI/S0 Module with High Precision Clock
- BNMO-1E1: 1 Port PRI E1 Module with High Precision Clock
- BNMO-2E1: 2 Port PRI E1 Module with High Precision Clock
- BNMO-1PRI: 1 Port PRI T1/E1 Module with High Precision Clock
- BNMO-2PRI: 2 Port PRI T1/E1 Module with High Precision Clock
Standard Configurations: ISDN
Model: BF4002S02FXSe - 2 BRI/S0 and 2 FXS PCIe VoIP Card
- Max Concurrent Channels: 16 Additional Module Slots Available: 1
Model: BF4004S0e - 4 BRI/S0 PCIe VoIP Card with High Precision Clock for DECT
- Max Concurrent Channels: 16 Additional Module Slots Available: 1
Model: BF16001E1e - 1 PRI E1 PCIe VoIP Card with High Precision Clock for DECT
- Max Concurrent Channels: 64 Additional Module Slots Available: 1
Standard Configurations: Analog
Model: BF4004FXOe - 4 FXO PCIe VoIP Card
- Max Concurrent Channels: 16 Additional Module Slots Available: 1
Model: BF400FXSe - 4 FXS PCIe VoIP Card
- Max Concurrent Channels: 16 Additional Module Slots Available: 1
