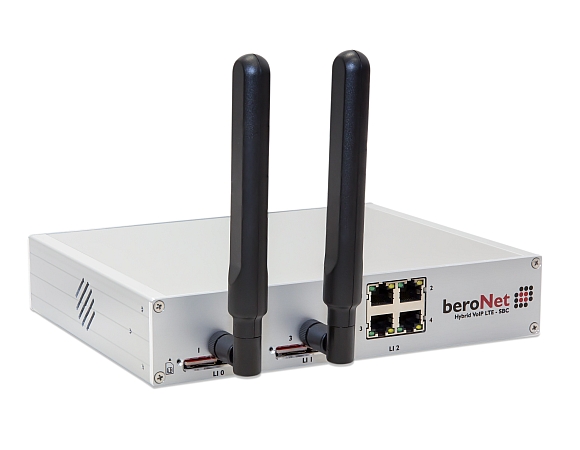

beroNet cloud managed VoLTE SBC
As a successor product to the GSM Gateway, VoLTE SBCs function as a fully-fledged replacement and are also fully downward compatible. 2G (GSM) and 3G (UMTS) connections are still supported. In addition, the VoLTE SBCs feature better voice quality and faster call set-up within the 4G network.
They allow an easy connection of SIP to mobile networks for voice calls as well as SMS messaging, and include up to 6 LTE ports. Hybrid models enable add-on ISDN or analog ports in a single device to simply connect extra equipment or PSTN lines. With their two network interfaces and additional beroNet SIP-to-SIP licenses, take advantage of SBC functionalities to secure VoIP networks and make IP PBX systems and VoIP providers compatible. beroNet LTE SBCs are an ideal solution for voice failover via LTE and can be safely remote managed via the beroNet Cloud.
Options give you versatility and security
The beroNet VoLTE SBC connects SIP to LTE, supports voice and SMS messaging and is ideal solution for least cost routing and voice failover. All SBC Models come with two network interface cards, and with additional beroNet SBC software licenses take advantage of SBC functionality and meet your customers' requirements concerning SIP-to-SIP calls.
Features
- Supports voice and SMS transmission
- Up to 6 concurrent SIP-to-LTE calls
- Up to 128 concurrent SIP-to-SIP transparent calls
- Up to 32 concurrent SIP-to-SIP transcoded calls
- Hybrid models with additional ISDN or analog interfaces
- Voice Failover options via LTE, Survival Branch PBX App available
- Make IP PBX Systems compatible with VoIP Providers
- Manipulate SIP Header
- Secure the IP PBX with topology hiding and DoS-Attack prevention
- Easy to manage via WebGUI
- Convert from TCP to UDP, RTP to SRTP, varying codecs
- Cloud managed via beroCloud
- Expandable with additional SBCs and Apps
- Still compatible with GSM/UMTS
Technical Specifications
- 2, 4 or 6 LTE Ports (2, 4 or 6 SIM cards)
- 2G (GSM) / 3G (UMTS) / 4G (VoLTE)
- 2G Bands: B3(1800), B8(900)
- 3G Bands: B1(2100), B8(900)
- 4G Bands: B3(1800), B7(2600), B20(800), B1(2100), B8(900)
- SMS and Concatenated SMS (Text and PDU)
- Supplementary LTE services (CLIP, CLIR)
- Codecs: G.723.1 and Annex A, G.729 a/b, G.726, (up to 4 channels)
- G.711 including echo cancellation (G.168/G.165, 128ms)
- Voice activity detection / comfort noise generation
- DTMF digit detection and generation
- SIP user agent IETF RFC3261 compatible
- SIP over UDP/TCP with optional TLS 1.2 support, SRTP

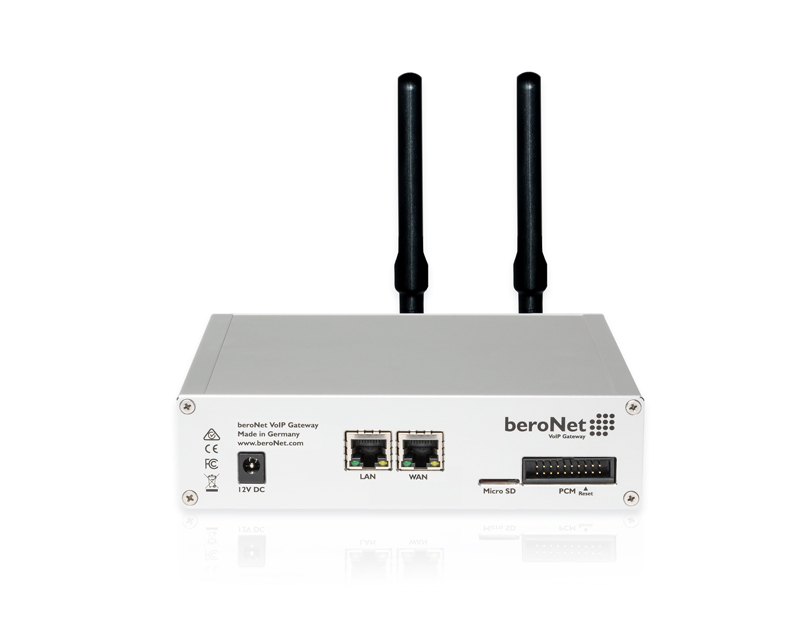

- Two 100Mbit LAN Ports (LAN / WAN)
- Power supply: 110-230V, operating 12V DC at 2A
- Average power consumption: 6 Watts (24 Watts maximum)
- CE, FCC and ACMA compliant
- Dimensions: M - 168 x 170 x 42 mm, L - 218 x 170 x 42 mm
- Weight: M - 800g, L - 1000g
- Mounting: 1U, optional available: 19“ rack brackets, wall-mountable
- Shipped with 14 cm stock antennas, optional available: antenna with 2,5 m cable and magnetic foot
- Storage temperature: -20° to 70°C, operating temperature: 0° to 70°C
- Humidity: up to 90%, non-condensing
SBC with LTE Interfaces (EU version)
LTE Models - non-modular - BF19Bracket available as optional accessory
- BNSBC-M-2LTE, 2 LTE VoIP SBC
- BNSBC-M-4LTE, 4 LTE VoIP SBC
LTE Models - non-modular - BNSBC19BracketL available as optional accessory
- BNSBC-M-6LTE, 6 LTE VoIP SBC
2 LTE ports Hybrid analog and/or ISDN standard Configurations* - BF19Bracket available as optional accessory
- BNSBC-M-2LTE4FXS, 2 LTE - 4 FXS VoIP SBC
- BNSBC-M-2LTE4FXO, 2 LTE - 4 FXO VoIP SBC
- BNSBC-M-2LTE2S02FXS, 2 LTE - 2 FXS - 2 BRI VoIP SBC
- BNSBC-M-2LTE4BRI, 2 LTE - 4 BRI VoIP SBC
- BNSBC-L-2LTE1PRI, 2 LTE - 1 PRI VoIP SBC
- *other bundles on request
4 LTE ports Hybrid analog and/or ISDN standard Configurations* - BNSBC19BracketL available as optional accessory
- BNSBC-M-4LTE4FXS, 4 LTE - 4 FXS VoIP SBC
- BNSBC-M-4LTE4FXO, 4 LTE - 4 FXO VoIP SBC
- BNSBC-M-4LTE2S02FXS, 4 LTE - 2 FXS - 2 BRI VoIP SBC
- BNSBC-M-4LTE4BRI, 4 LTE - 4 BRI VoIP SBC
- BNSBC-L-4LTE1PRI, 4 LTE - 1 PRI VoIP SBC
- *other bundles on request
Optional SBC licenses for SIP-to-SIP calls, transparent and/or transcoded
- beroNet SBC Software License for transparent sessions, BNSBC-SESSION-TP-x
x stands for the amount of sessions, up to 128 for all models - beroNet SBC Software License for transcoded sessions, BNSBC-SESSION-x
x stands for the amount of sessions, up to 8 for "M" model and up to 32 for "L"
